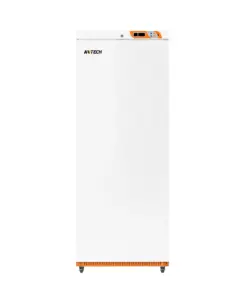

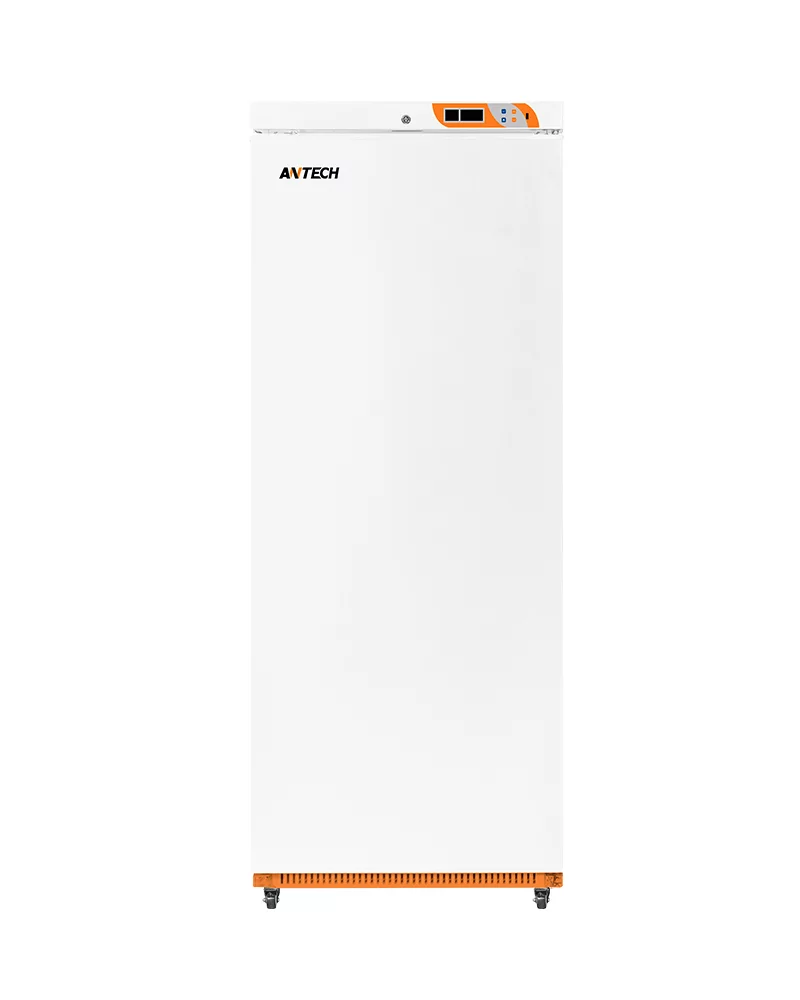

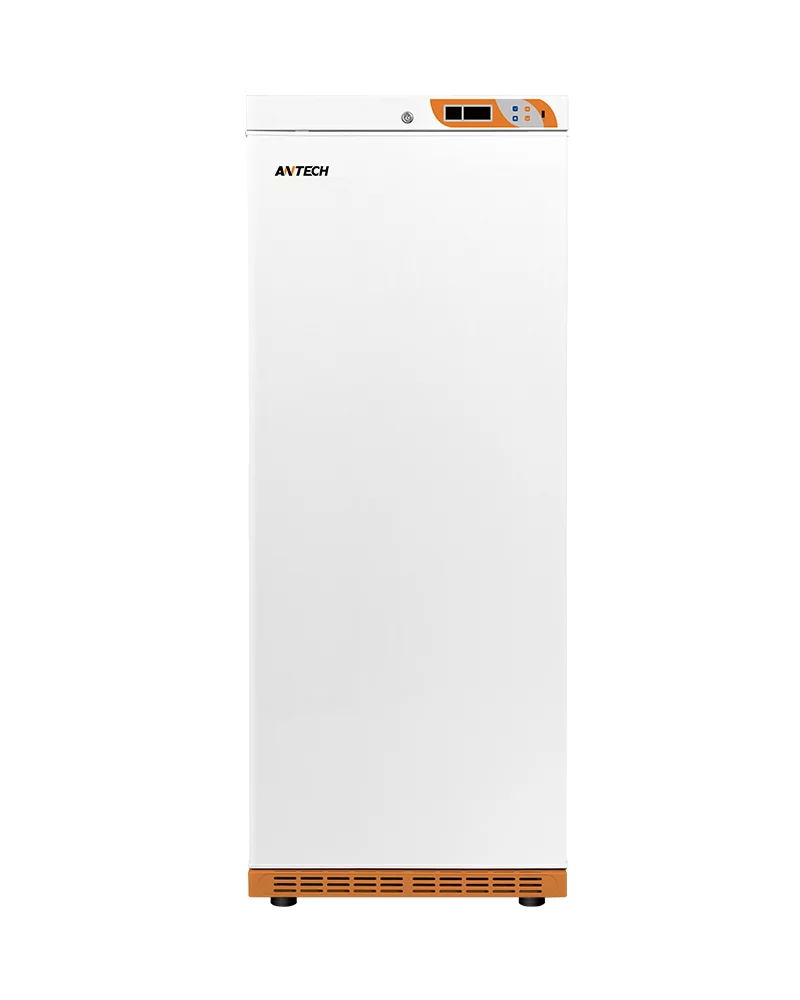

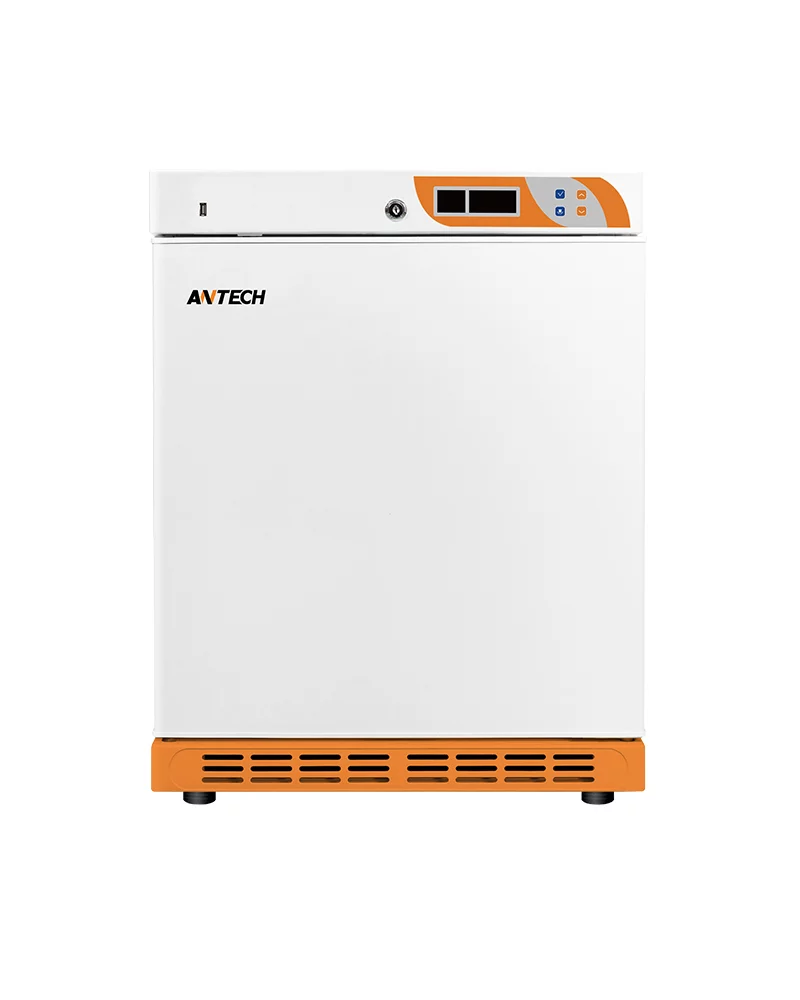

LabSafe系列立式實驗室冷凍櫃
規格：65L / 120L / 280L / 380L / 550L
專業的 LabSafe 系列實驗室冷凍櫃，專為實驗室、醫院和藥局開發，確保對溫度敏感的醫療產品和生物材料提供最佳儲存條件，滿足對精確控制冷藏的最高要求。採用高密度實心門（一體成形門）以提供卓越的隔熱效果。LabSafe 冷凍櫃符合主要的國際要求，包括 CE、UL 等。
性能
人體工學設計
環境友善
警報
安全性
| Model | MDF-25U60 | MDF-25U150 | MDF-25U270 | MDF-25U400 | MDF-25U600 | |
| Basic | Type | Desktop | Under-counter | Upright | Upright | Upright |
| Temperature range (℃) | -10～-25 | -10～-25 | -10～-25 | -10～-25 | -10～-25 | |
| Climate type | N | N | N | N | N | |
| Capacity (L) | 65 | 120 | 280 | 380 | 550 | |
| Cooling type | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling | |
| Defrost type | Manual | Manual | Manual | Manual | Manual | |
| Refrigerant | R600a | R600a | R600a | R290 | R290 | |

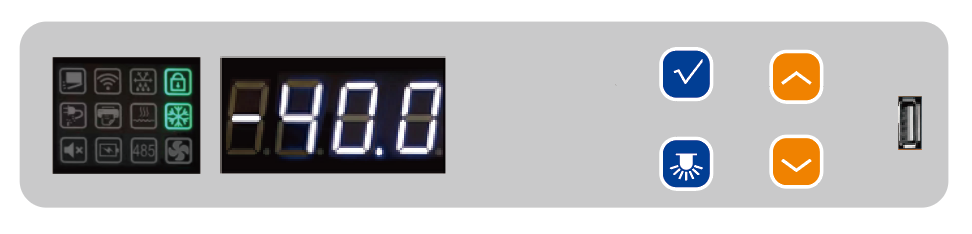

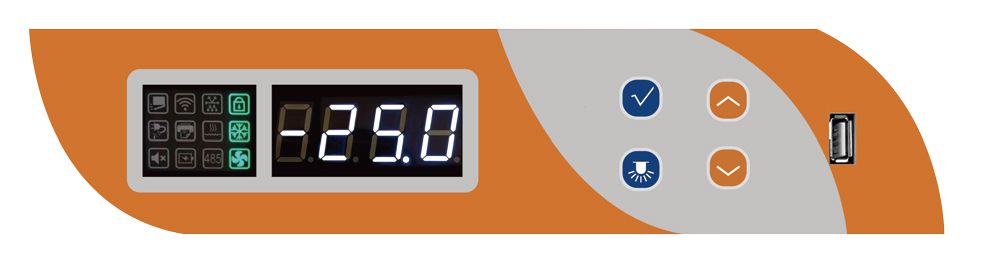

| Control | Controller | TC-200 | TC-200 | TC-200 | TC-200 | TC-200 |
| Display | LED digital | LED digital | LED digital | LED digital | LED digital | |
| Display accuracy | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
| Backup for alarm (Hrs) | 48 | 48 | 48 | 48 | 48 | |
| High/low temp check | ● | ● | ● | ● | ● | |
| USB port | ● | ● | ● | ● | ● | |
| Cloud monitoring (Wi-Fi) | ○ | ○ | ○ | ○ | ○ | |
| Power | Power supply (V/Hz) | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 |
| Rated power (W) | 95; 95; 115 | 120; 140; 170 | 220; 220; 200 | 220; 220; 230 | 250; 250; 230 | |
| Rated current (A) | 0.65; 0.65; 0.85 | 1.1; 1.3; 1.7 | 1.7; 1.7; 1.8 | 1.7; 1.7; 2.0 | 1.7; 1.7; 2.0 | |
| Alarm | Visible/audible alarm | ● | ● | ● | ● | ● |
| High/low temp | ● | ● | ● | ● | ● | |
| Sensor failure | ● | ● | ● | ● | ● | |
| Door open | ● | ● | ● | ● | ● | |
| Low battery | ● | ● | ● | ● | ● | |
| Power failure | ● | ● | ● | ● | ● | |
| Remote alarm contact | ● | ● | ● | ● | ● | |
| Accessories | Door lock with key | ● | ● | ● | ● | ● |
| Door type | Solid door | Solid door | Solid door | Solid door | Solid door | |
| LED light | ● | ● | ● | ● | ● | |
| Test access port | Φ19mm × 1 | Φ19mm × 1 | Φ19mm × 1 | Φ19mm × 1 | Φ19mm × 1 | |
| Adjustable shelves Qty | 1 | 2 | 5 | 5 | 5 | |
| Shelf at bottom Qty | 1 | 1 | 1 | 1 | 1 | |
| Adjustable foot | ● | ● | ● | / | / | |
| Caster | / | / | / | ● | ● | |
| Material | Exterior | Pre-coated steel | Pre-coated steel | Pre-coated steel | Pre-coated steel | Pre-coated steel |
| Interior | Pre-coated aluminum | Pre-coated aluminum | Pre-coated aluminum | Pre-coated aluminum | Pre-coated aluminum | |
| Insulation | Polyurethane, 50mm | Polyurethane, 50mm | Polyurethane, 50mm | Polyurethane, 50mm | Polyurethane, 60mm | |
| Weight & size | Net weight (kg) | 33 | 43 | 61 | 74 | 95 |
| Gross weight (kg) | 40 | 51 | 74 | 92 | 113 | |
| Internal W×D×H (mm) | 410×450×420 | 500×540×570 | 500×450×1290 | 500×520×1550 | 645×530×1645 | |
| External W×D×H (mm) | 510×590×660 | 600×680×812 | 600×560×1585 | 600×680×1840 | 775×700×1945 | |
| Packing W×D×H (mm) | 570×620×760 | 660×620×910 | 660×620×1630 | 660×700×1900 | 830×750×2000 | |
| Volume (m³) | 0.27 | 0.37 | 0.67 | 0.88 | 1.25 | |
