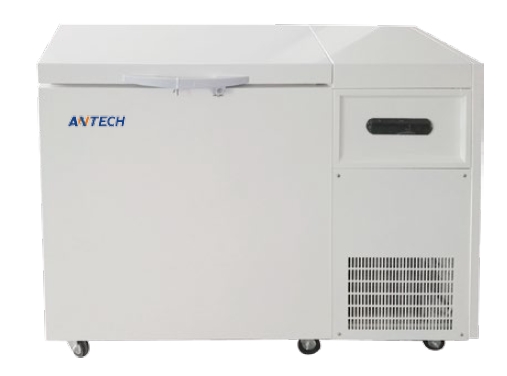

ANTECH -150°C 超低溫冷凍櫃(臥式)

品牌：Antech Scientific
產品型號：MDF-150C118 / MDF-150C208

ANTECH -150°C Cryo Freezer

規格：118L / 258L

ANTECH -150℃超低溫冷凍櫃提供安全、便利且經濟實惠的長期生物樣本儲存解決方案

產品特色

ANTECH -150°C 超低溫冷凍櫃(臥式)產品特色

-150°C 超低溫冷凍櫃

主要特色

人體工學設計

規格

Model		MDF-150C118	MDF-150C208
Main specifications	Type	Chest	Chest
	Cooling technology	2-compressor cascade system	2-compressor cascade system
	Temperature setting range (°C)	-125 ~ -150	-125 ~ -150
	Climate type	N	N
	Capacity (L)	118	258
	2″ box storage Qty (Pcs)	48	165
	Net weight (KGs)	165	280
	Intermal W × D × H (mm)	540 × 400 × 560	780 × 500 × 660
	Extermal W × D × H (mm)	1275 × 795 × 990	1510 × 885 × 1095
	Door entrance limit (≥mm)	780	885
	Cooling type	Direct	Direct
	Defrost	Manual	Manual
	Number of compressor	2	2
Control & display system	Controller	Microprocessor	Microprocessor
	Display	LED	LED
	Temperature display accuracy	0.1	0.1
Power	Power supply (V/Hz)	220/50; 220/60; 120/60	220V/50Hz
	Rated power (W)	1800; 1800; 1800	2450
	Rated current (W)	10.0; 10.0; 19.8	15.0
Data memory & monitoring	Cloud monitoring (Wi-Fi)	CryoMonitor 2000TF, optional	CryoMonitor 2000TF, optional
Alarm functions	Visible/audible alarm	Yes	Yes
	High/Low temperature	Yes	Yes
	Power failure	Yes	Yes
	Sensor failure	Yes	Yes
Accessories	Inner door	1	2
	Casters	6	6
	Test access port	Φ20mm × 1	Φ20mm × 1
	Safety door lock	Yes	Yes
	Freezer rack	Optional	Optional
	Rack model	CFC-9-2, 1×9	CFC-11-2, 1×11
	Rack Qty	20	43
	LN2 backup system	Optional	Optional
Material	Exterior	Pre-coated steel	Pre-coated steel
	Interior	Stainless steel	Stainless steel
	Insulation	Polyurethane	Polyurethane
	Cabinet insulation thickness (mm)	150	150
	Outer door thinkness (mm)	105	105
	Compressor brand	SECOP	SECOP
Shipping	Gross weight (KGs)	208	292
	Packing W × D × H (mm)	1340 × 860 × 1140	1570 × 960 × 1230
	Volume (m³)	1.31	1.85
