ANTECH -80°C超低溫冷凍櫃(小容量系列)

品牌：Antech Scientific

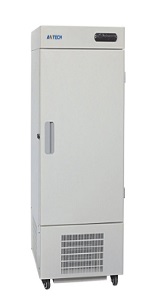

產品型號：MDF-86U108 / MDF-86U58 / MDF-86U158

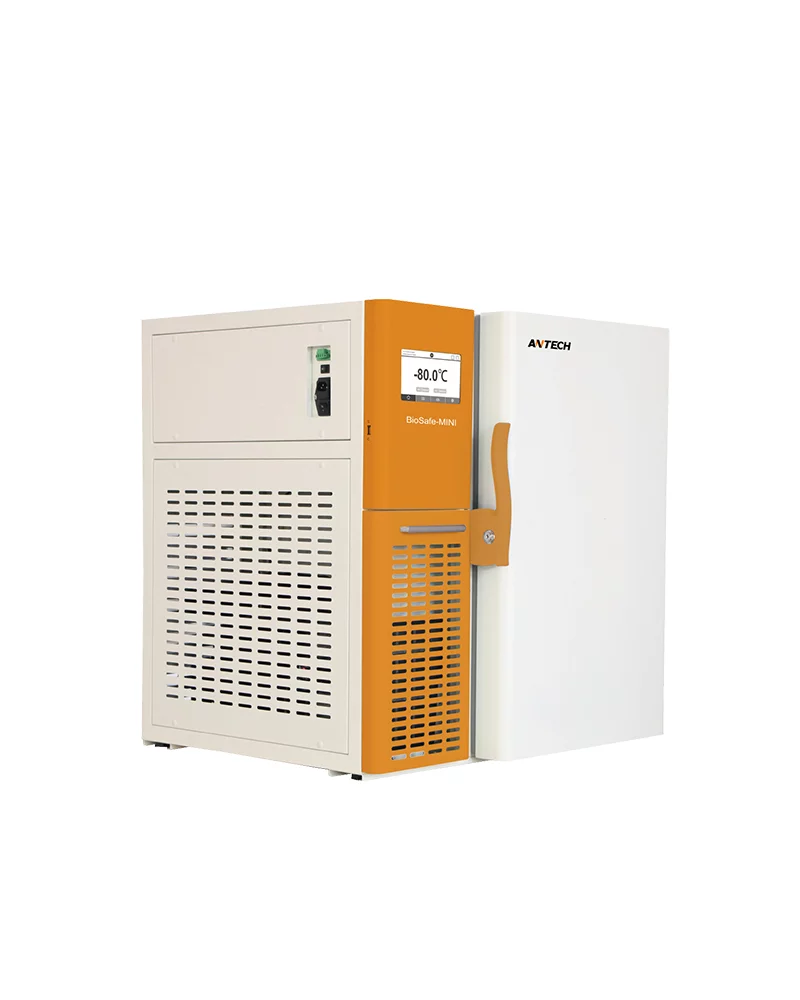

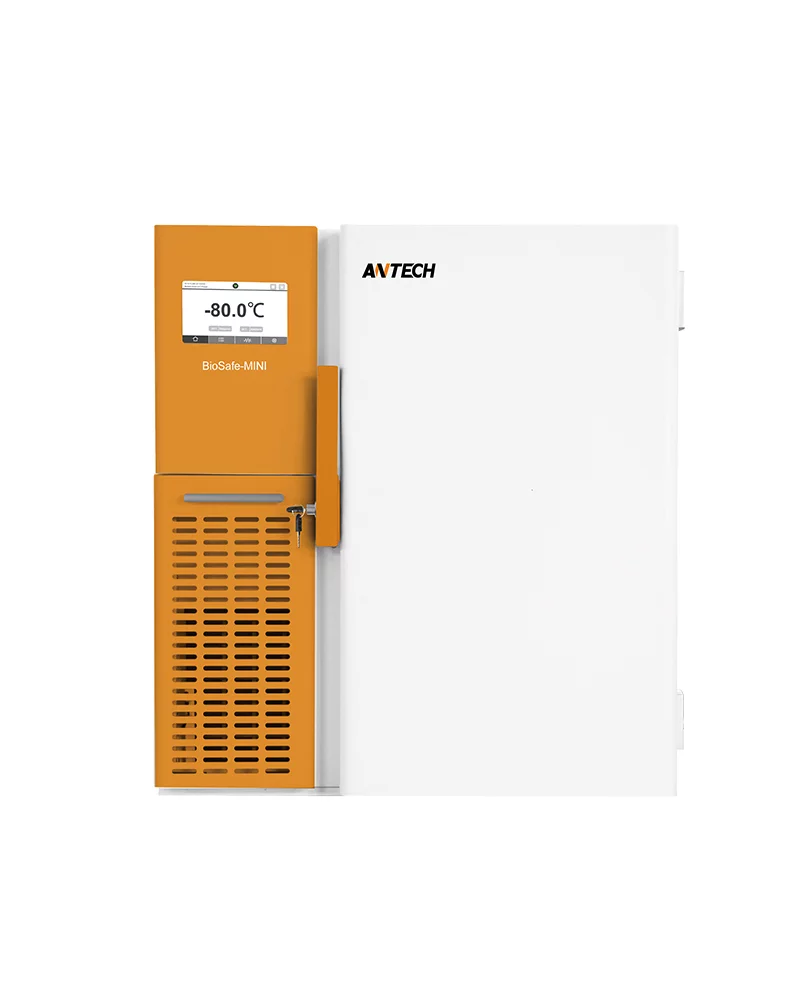

-86°C BioSafe-MINI

規格：88L / 58L / 158L

ANTECH -86℃ 超低溫冰箱採用單壓縮機自動複疊冷凍系統設計，溫度穩定、快速降溫、能耗低

溫控器操作簡便，降低故障風險
內部採用#304不銹鋼材質，經久耐用且易清潔
確保穩定超低溫儲存，適用於細菌、紅血球、白血球、病毒及其他生物材料
廣泛用於科研機構、製藥業、臨床實驗室、血庫及電子化工企業實驗室

點此填寫詢問表單型錄下載

特色
規格
參考資料

產品特色

ANTECH -80°C超低溫冷凍櫃(小容量系列)產品特色

ANTECH -86℃ 超低溫冰箱採用單壓縮機自動複疊冷凍系統設計。其主要特點是溫度穩定、快速降溫、能耗低。溫控器操作簡便，降低了複雜控制所帶來的故障風險。內部採用#304不銹鋼材質，經久耐用，易於清潔。ANTECH 超低溫冰箱可確保穩定的超低溫儲存條件，用於儲存細菌、紅血球、白血球、病毒和許多其他生物材料。本產品廣泛應用於科研機構、製藥業、臨床實驗室、血庫以及電子化工企業的實驗室。

規格

ANTECH -80°C超低溫冷凍櫃(小容量系列)規格

Category	Item	MDF-86U108	MDF-86U58	MDF-86U158
Basic	Type	Under-counter, upright	Upright	Upright
	Cooling technology	Single compressor	Single compressor	Single compressor
	Temperature setting range (°C)	-40～-86	-40～-86	-40～-86
	Climate type	N	N	N
	Capacity (L)	88	58	158
	2″ box storage Qty (Pcs)	60	36	108
	Door entrance limit (≥mm)	676	620	700
	Cooling type	Direct	Direct	Direct
	Defrost type	Manual	Manual	Manual
	Refrigerant	Mixed gas	Mixed gas	Mixed gas
	Number of compressor	1	1	1
Control	Controller	TC-300	TC-300E	TC-300E
	Display	7″ LCD touch screen	LED	Electronic
	Temperature display accuracy	0.1	0.1	0.1
	Password protection	●	●	●
	USB port	●	/	/
	Cloud monitoring (Wi-Fi)	○	○	○
	Chart recorder	○	○	○
Power	Power supply (V/Hz)	220/50; 220/60; 120/60	220/50; 220/60; 120/60	220/50; 220/60; 120/60
	Rated power (W)	410; 460; 520	500; 500; 500	500; 500; 500
	Rated current (A)	2.3; 2.6; 6.6	3.2; 3.2; 6.0	3.2; 3.2; 6.0
Alarm	Visible/audible alarm	●	●	●
	High/Low temperature	●	●	●
	Hot condenser	●	/	/
	Power failure	●	●	●
	Sensor failure	●	●	●
	High ambient temperature	●	/	/
	Door open	●	●	●
	Remote alarm contact	●	●	●
Accessories	Safety door lock	●	●	/
	Inner door	2	2	3
	Test access port	Φ19mm x 2	Φ20mm x 1	Φ20mm x 1
	Adjustable shelves	1	1	2
	Freezer rack	○	/	/
	Rack type (DxH)	3×5	/	/
	Rack Qty	4	/	/
	Pressure equalization port	Manual	/	/
	Casters	●	●	●
	CO2/LN2 backup system	○	○	○
Material	Exterior	Pre-coated steel	Pre-coated steel	Pre-coated steel
	Interior	Pre-coated steel	Stainless steel	Stainless steel
	Insulation	Polyurethane	Polyurethane	Polyurethane
	Vacuum insulation panel (VIP)	●	N/A	N/A
	Cabinet insulation thickness (mm)	90	90	120
	Outer door thinkness (mm)	90	90	120
Weight & size	Net weight（kg）	85	75	130
	Gross weight (kg)	105	95	160
	Intermal W×D×H (mm)	320×450×610	364×405×409	460×455×800
	Extermal W×D×H (mm)	800×700×870	540×620×1115	700×700×1580
	Packing W×D×H (mm)	850×730×953	610×700×1240	780×800×1710
	Packing volume (m3)	0.59	0.53	1.07
