產品特色
- 附圓形提筒。
- 超低液態氮消耗。
- 節省空間且重量輕。
- 零件保固兩年，真空保固五年。

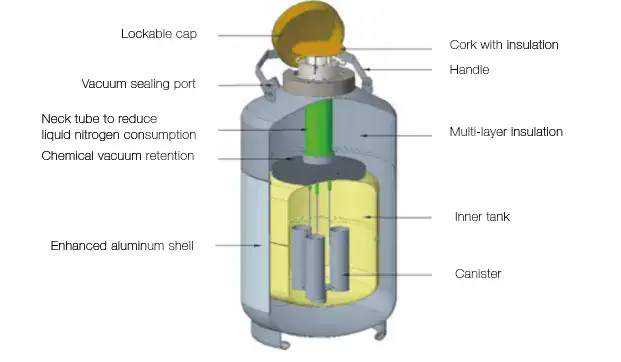

結構圖
Phone
市話 04 22439623
傳真 04 22430827

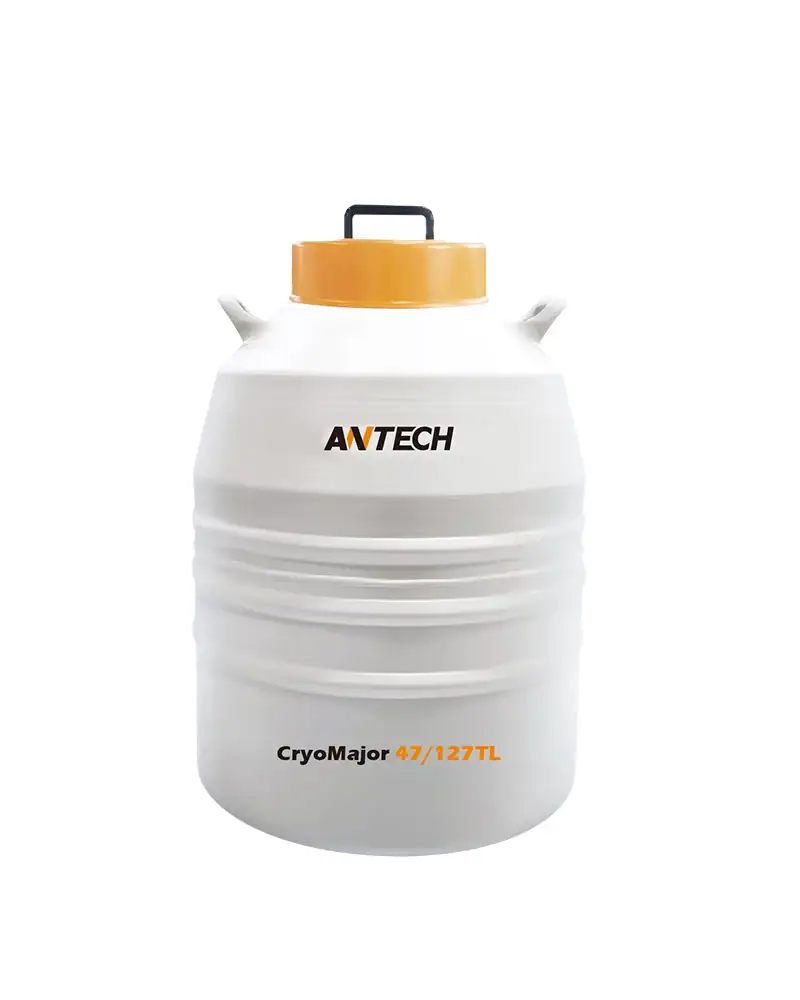

ANTECH CryoMajor系列 帶罐杜瓦瓶
品牌：Antech Scientific
產品型號：CryoMajor 2/35 , CryoMajor 3/50 , CryoMajor 6/50 , CryoMajor 10/50 , CryoMajor 10/80 , CryoMajor 13/50L , CryoMajor 15/50 , CryoMajor 16/80 , CryoMajor 20/50L , CryoMajor 20/80L , CryoMajor 25/50L , CryoMajor 25/80L , CryoMajor 30/50L , CryoMajor 30/80L , CryoMajor 35/50L , CryoMajor 35/80L , CryoMajor 35/125L , CryoMajor 35/125TL , CryoMajor 47/127L , CryoMajor 47/127TL , CryoMajor 50B/50L
產品型號：CryoMajor 2/35 , CryoMajor 3/50 , CryoMajor 6/50 , CryoMajor 10/50 , CryoMajor 10/80 , CryoMajor 13/50L , CryoMajor 15/50 , CryoMajor 16/80 , CryoMajor 20/50L , CryoMajor 20/80L , CryoMajor 25/50L , CryoMajor 25/80L , CryoMajor 30/50L , CryoMajor 30/80L , CryoMajor 35/50L , CryoMajor 35/80L , CryoMajor 35/125L , CryoMajor 35/125TL , CryoMajor 47/127L , CryoMajor 47/127TL , CryoMajor 50B/50L
CryoMajor Series Dewar with Canisters
規格：2L / 3L / 6L / 10L / 10L / 13L / 15L / 16L / 20L / 20L
- 特色
- 規格
- 參考資料
產品特色
ANTECH CryoMajor系列 帶罐杜瓦瓶產品特色
規格
ANTECH CryoMajor系列 帶罐杜瓦瓶規格
| Model | CryoMajor 2/35 | CryoMajor 3/50 | CryoMajor 6/50 | CryoMajor 10/50 | CryoMajor 10/80 | CryoMajor 13/50L | CryoMajor 15/50 | CryoMajor 16/80 | CryoMajor 20/50L |
| Maximum storage capacity | |||||||||
| Number of canister | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Canister type | 1-layer | 1-layer | 1-layer | 1-layer | 1-layer | 2-layer | 1-layer | 1-layer | 2-layer |
| Number of straws, 1/2 cc | 159 | 792 | 792 | 792 | 2250 | 1200 | 792 | 2250 | 1200 |
| Number of straws, 1/4 cc | 345 | 1716 | 1716 | 1716 | 4986 | 2580 | 1716 | 4986 | 2580 |
| Performance | |||||||||
| LN2 capacity (L) | 2 | 3 | 6 | 10 | 10 | 13 | 15 | 16 | 20 |
| Static evaporation rate (L/day) | 0.11 | 0.12 | 0.12 | 0.12 | 0.21 | 0.12 | 0.11 | 0.25 | 0.12 |
| Static holdover time (day) | 18 | 26 | 52 | 86 | 48 | 108 | 136 | 64 | 167 |
| Dimensions | |||||||||
| Neck opening (mm) | 35 | 50 | 50 | 50 | 80 | 50 | 50 | 80 | 50 |
| External diameter (mm) | 195 | 224 | 300 | 300 | 300 | 300 | 396 | 451 | 396 |
| Overall height (mm) | 420 | 441 | 488 | 566 | 557 | 630 | 618 | 466 | 688 |
| Canisters diameter (mm) | 25 | 38 | 38 | 38 | 63 | 38 | 38 | 63 | 38 |
| Canister height (mm) | 120 | 120 | 120 | 120 | 120 | 276 | 120 | 120 | 276 |
| Weight empty (kg) | 2.9 | 3.5 | 5.3 | 6 | 6.3 | 8.4 | 10 | 12.8 | 12.2 |
| Weight full (kg) | 4.5 | 5.9 | 10.2 | 14.1 | 14.4 | 19.0 | 22.2 | 25.8 | 28.5 |
| Model | CryoMajor 20/80L | CryoMajor 25/50L | CryoMajor 25/80L | CryoMajor 30/50L | CryoMajor 30/80L | CryoMajor 35/50L | CryoMajor 35/80L |
| Maximum storage capacity | |||||||
| Number of canister | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Canister type | 2-layer | 2-layer | 2-layer | 2-layer | 2-layer | 2-layer | 2-layer |
| Number of straws, 1/2 cc | 3984 | 1200 | 3984 | 1200 | 3984 | 1200 | 3984 |
| Number of straws, 1/4 cc | 8532 | 2580 | 8532 | 2580 | 8532 | 2580 | 8532 |
| Performance | |||||||
| LN2 capacity (L) | 20 | 25 | 25 | 31.5 | 31.5 | 35.5 | 35.5 |
| Static evaporation rate (L/day) | 0.225 | 0.20 | 0.22 | 0.12 | 0.21 | 0.12 | 0.20 |
| Static holdover time (day) | 89 | 125 | 114 | 254 | 147 | 286 | 178 |
| Dimensions | |||||||
| Neck opening (mm) | 80 | 50 | 80 | 50 | 80 | 50 | 80 |
| External diameter (mm) | 396 | 396 | 396 | 451 | 451 | 451 | 451 |
| Overall height (mm) | 701 | 741 | 741 | 681 | 681 | 735 | 760 |
| Canisters diameter (mm) | 63 | 38 | 63 | 38 | 63 | 38 | 63 |
| Canister height (mm) | 276 | 276 | 276 | 276 | 276 | 276 | 276 |
| Weight empty (kg) | 12.7 | 13.5 | 14 | 15.3 | 15.8 | 16.3 | 17.2 |
| Weight full (kg) | 29.0 | 33.9 | 34.4 | 40.9 | 41.4 | 45.2 | 46.1 |
| Model | CryoMajor 35/125L | CryoMajor 35/125TL | CryoMajor 47/127L | CryoMajor 47/127TL | CryoMajor 50B/50L |
| Maximum storage capacity | |||||
| Number of canister | 6 | 10 | 6 | 10 | 6 |
| Canister type | 2-layer | 2-layer | 2-layer | 2-layer | 2-layer |
| Number of straws, 1/2 cc | 9360 | 7300 | 9360 | 7300 | 1200 |
| Number of straws, 1/4 cc | 21000 | 16400 | 21000 | 16400 | 2580 |
| Performance | |||||
| LN2 capacity (L) | 35.5 | 35.5 | 47 | 47 | 50 |
| Static evaporation rate (L/day) | 0.36 | 0.36 | 0.36 | 0.36 | 0.24 |
| Static holdover time (day) | 99 | 99 | 131 | 131 | 208 |
| Dimensions | |||||
| Neck opening (mm) | 125 | 125 | 127 | 127 | 50 |
| External diameter (mm) | 451 | 451 | 508 | 508 | 508 |
| Overall height (mm) | 805 | 805 | 730 | 730 | 777 |
| Canisters diameter (mm) | 97 | 72 | 97 | 72 | 38 |
| Canister height (mm) | 276 | 276 | 276 | 276 | 276 |
| Weight empty (kg) | 18 | 18 | 19.2 | 19.2 | 21 |
| Weight full (kg) | 46.9 | 46.9 | 57.5 | 57.5 | 61.7 |
相關資訊
ANTECH CryoMajor系列 帶罐杜瓦瓶相關資料
| Name | Description | |||
| CryoMonitor 1000 | Real-time monitor liquid nitrogen tank temperature display and with high temperature alarm function, users can judge the liquid nitrogen level condition through the temperature | |||
| Canister | Double level and single level with different diameters. | |||
| Vial Cane | Made of SUS304 for 5 vials and 3 vials (2ml) | |||
| Roller Base | Made of Stainless steel for moving the liquid nitrogen tank | |||
| Liquid Level Ruler | To measure liquid nitrogen level | |||
| Locking Cap | Different sizes available upon neck diameter | |||
| Transport Kit | Foot type and hand type available, for 50mm or 80mm neck diameter | |||
| Cryogenic Protection Gloves | 38cm, 48cm and 68cm length available | |||
