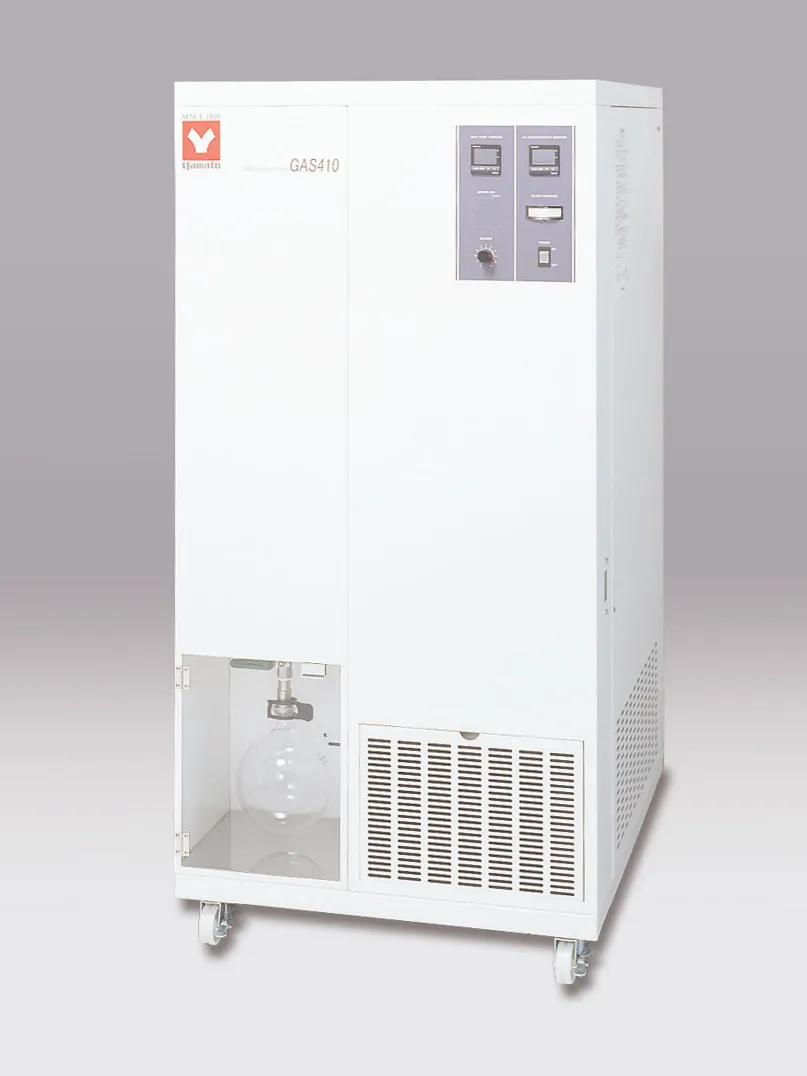

透過 Yamato 的 GAS410 溶劑回收裝置，使用有機溶劑安全有效地噴霧乾燥樣品。GAS410 採用高度安全的氮氣密封循環系統，可防止有毒樣本向外排放。我們經濟高效的溶劑回收裝置與冷凍機和壓縮機整合在一起，無需購買單獨的設備。大和 GAS410 溶劑回收裝置可支援熱敏材料的低溫乾燥。噴霧乾燥和樣品回收是透過該裝置內置的精心設計的安全措施進行的。
| Model | GAS410 |
|---|---|
| Solvent recovery system | Capacitor + freezer |
| Circulating gas | N2 gas (sealed circulation when connected to ADL311SA or GB-210A) |
| Circulating volume flow | 0.12 to 0.65m3/min |
| Compressor (for spraying) | Linear compressor integrated |
| Circulation blower | Roots blower |
| Solvent recovery container | 2L flask |
| Freezer | Air-cooled condensation full-sealed type: 400W R404A (GWP:3920) |
| Solvent recovery mechanism | Capacitor cooling mechanism |
| Filter | Cartridge filter |
| Instruments | Cooling trap temperature display monitor Filter differential pressure meter (Monitor for clogging of filter) O2 density display monitor Blower wind amount adjusting volume |
| O2 sensor | Solid electrolyte (Zirconium) limit current type |
| Pump | For circulation to measure Oxygen |
| Safety device | O2 density meter, Flammable gas alarm, Electric leakage breaker, N2 gas forced introduction (when removing nozzles) |
| Required N2 amount | 15 L/h at 0.1 MPa |
| Accessories | Set of connection parts, anti-seismic clamps, interface cable, sample gas for gas alarm inspection, 2L flask |
| External dimensions（W×D×H mm） | 700×950×1500mm |
| Power Source | AC200-AC240V Single phase AC200〜240V 5A（15A） |
| Weight | 130kg |
